| No | Items | Capability |
| 1 | Layers | 1-20layers |
| 2 | Base Material | FR4, High Tg FR4, Halogen Free, Isola, Rogers, Aluminium, etc |
| 3 | Max. Size | 600mm x 1200mm |
| 4 | Finished Board Thickness | 0.2mm-8.0mm |
| 5 | Copper Thickness | 0.5oz-10oz |
| 6 | Surface Finishing | HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, etc. |
| 7 | Min. Trace Width/Space | 0.075/0.075mm |
| 8 | Min. Finish Holes Size | 0.1mm for mechanical holes |
| 9 | Diameter Tolerance | 0.05mm for mechanical |
| 10 | Registration | 0.075mm for mechanical |
| 11 | Soldermask Color | Green, White, Black, Red, Yellow, Blue |
| 12 | Silkscreen Color | White, Black, Yellow, Blue |
| 13 | Impedance Control | +/-10% |
| 14 | Profiling Punching | Routing, V-CUT, Chamfer |
| 15 | Special Holes | Blind/Buried holes, Countersunk holes |
| 16 | Reference Standard | IPC-A-600H Class 2, Class 3, TS16949 |
| 17 | Certificate | ISO14001, ISO9001, UL, cUL |
| 18 | PCB Package | Vacuum & Carton |
4.Lead time
| Category | Quickest Lead time | Normal Lead Time | Mass Production |
| 2 Layers | 24hrs | 3-4 working days | 8-15 working days |
| 4 Layers | 48hrs | 3-5 working days | 10-15 working days |
| 6 Layers | 72hrs | 3-6 working days | 10-15 working days |
| 8 Layers | 96hrs | 3-7 working days | 14-18 working days |
| 10 Layers | 120hrs | 3-8 working days | 14-18 working days |
| 12 Layers | 120hrs | 3-9 working days | 20-26 working days |
| 14 Layers | 144hrs | 3-10 working days | 20-26 working days |
| 16-20 Layers | Depends on the specific requirements |
| Above 20 Layers | Depends on the specific requirements |

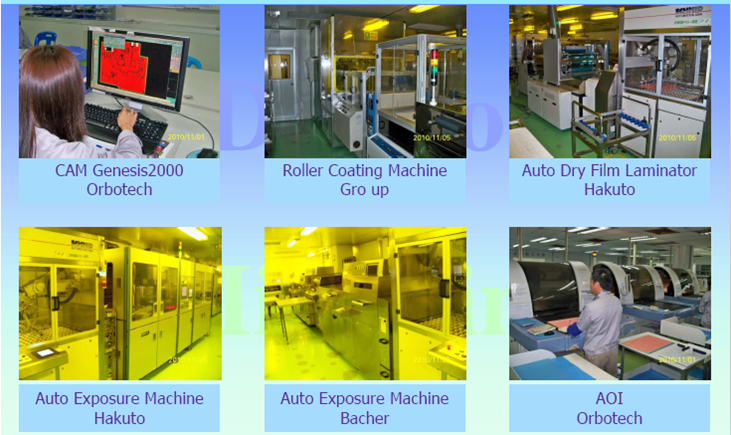

5.Manufacturing Equipment
6.Certificate
7.Workshop
8.FAQ
Q1: How long have you been in business?
-We have been supplying printed circuit boards since 2006.
Q2: Are you ISO9001: 2000 certified?
-Yes, of course.
Q3: What information do I need to provide to get a price quote for my project?
-We can never have too much information. At a minimum we need gerber data, generally in RS274x format, Excellon drill file, PCB specification,quantity and lead times.
Q4: Do you handle PCB quick turnaround?
-Yes, we do. We can turn 1-2layers boards in one day, for 4-6layers pcb we build them in 3-5 days.
Q5: What is your record for "on time" delivery?
-We strive for 100%, but currently run 97-99% on time.
Q6: What happens if the design changes while in process?
-We are quite resourceful and may be able to incorporate the changes in process. If the changes are too drastic, we will be forced to restart the order.
Q7: How long are my files kept after the completion of my order?
-We keep the electronic data backed-up at an offsite storage facility indefinitely.
