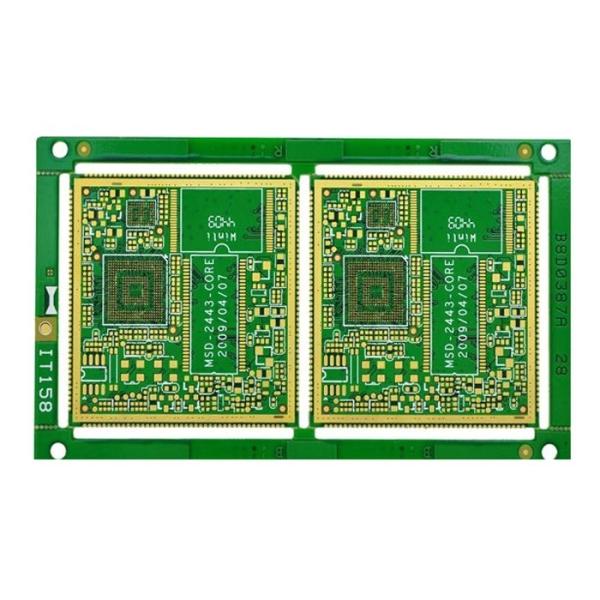

China Customized Multilayer PCB Board Fabrication FR4 Printed Circuit Board
PCB Capacity
| |
High precision prototype |
PCB bulk production |
| Max Layers |
1-28 layers |
1-14 layers |
| MIN Line width(mil) |
3mil |
3mil |
| MIN Line space(mil) |
3mil |
3mil |
| Min via (mechanical drilling) |
Board thickness≤1.2mm |
0.15mm |
0.2mm |
| Board thickness≤2.5mm |
0.2mm |
0.3mm |
| Board thickness＞2.5mm |
Aspect Ration≤13:1 |
Aspect Ration≤13:1 |
| Aspect Ration |
Aspect Ration≤13:1 |
Aspect Ration≤13:1 |
| Board thickness |
MAX |
8mm |
7mm |
| MIN |
2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm |
2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm |
| MAX Board size |
610*1200mm |
610*1200mm |
| Max copper thickness |
0.5-6oz |
0.5-6oz |
|
Immersion Gold/
Gold Plated Thickness
|
Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated:50—500u” |
|
| Hole copper thick |
25um 1mil |
25um 1mil |
| Tolerance |
Board thickness |
Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8% |
Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8% |
| Outline Tolerance |
≤100mm:+/-0.1mm
100<≤300mm:+/-0.15mm
>300mm:+/-0.2mm |
≤100mm:+/-0.13mm
100<≤300mm:+/-0.15mm
>300mm:+/-0.2mm |
| Impedance |
±10% |
±10% |
| MIN Solder mask bridge |
0.08mm |
0.10mm |
| Plugging Vias capability |
0.25mm--0.60mm |
0.70mm--1.00mm |
PCB Capacity
| Number of layers |
1 – 4 layers |
| Technology highlights |
Effective heat sink solutions for thermal applications. This construction type enables superior heat dissipation through use of either aluminium or copper substrate bonded to the insulated circuitry through thermal pre-preg or resin systems. |
| Materials |
Aluminium & copper plates. FR-4, PTFE, thermal dielectrics. |
| Dielectric thickness |
0.05mm – 0.20mm |
| Thermal conductivity |
1-12 W/m/K |
| Profile method |
Punching, Liquid cooled routing |
| Copper weights (finished) |
35μm – 140μm |
| Minimum track and gaps |
0.10mm / 0.10mm |
| Metal core thickness |
0.40mm – 3.20mm |
| Maxmimum dimensions |
550mm x 700mm |
| Surface finishes available |
HASL, LF HASL, OSP, ENIG, Imersion tin, Immsersion silver |
| Minimum mechanical drill |
0.30m |
Lead Time
| Board Type |
Manufacturing Lead Time |
| Single Sided |
5 – 20 Days dependant on volume |
| PTH |
7 – 25 Days dependant on volume |
| Multilayer |
15 – 30 Days dependant on volume & Technolog |
| Air Freight Lead Time – 4 Days |
| Sea Freight Lead Time – 30 Days |
| All Far East lead times are subject to customs clearance |
| Premium International shipments can be arranged by DHL, Fedex, UPS or TNT at extra cost |
Spec.of pcb production
Mini.Line space/width:3mil (75um)
Finished thickness:FR4 (1.60mm) finished thickness;
Material brand:Mainly brand:SHENGYI,Mitsubishi(BT-FR4),mitsuiseiki,OhmegaPly,Ticer,AMC,Isola,AGC,Neclo,Rogers,Taconic,Others;
Surface finished:Mainly immersion gold,support customize such as OSP/Immersion silver,tin,more;
Copper:1.0oz or Customize;
Layer:1-6 layer (Customize);
Soldermask:Green or Customize (Brand:Soldermask:TAIYO INK,ABQ)
Lead Time
| Category |
Quickest Lead Time |
Normal Lead Time |
| Double sideds |
24hrs |
120hrs |
| 4 Layers |
48hrs |
172hrs |
| 6 Layers |
72hrs |
192hrs |
| 8 Layers |
96hrs |
212hrs |
| 10 Layers |
120hrs |
268hrs |
| 12 Layers |
120hrs |
280hrs |
| 14 Layers |
144hrs |
292hrs |
| 16-20 Layers |
Depends on the specific requirements |
| Above 20 Layers |
Depends on the specific requirements |
When you send inquiry us,Pls be know that we have to get the following :
1-PCB production sepc. information;
2-Gerber files(PCB designer/engineer can export it from your layout software,also send us drilling file)
3-Quantity request,Including sample;
4-For multilayer thin FR4 PCB,please also provide us layer stack-up information;
Finally,If you are very big customers,Pls also let's know the details of your demand,Abis also can support your technical supporting if you need!Abis 's mission is that help you save cost with same high quality guarantee!
Want Better price,Better quality pcb ? Contact Abis now!
Specifications
1. We offer One-shop PCAB/PCB manufacturing service
2. 15 year of turnkey OEM experience
3. We can provide F4B,F4BK, Teconic,Arlon,Rogers material PCB
4. Timely customizations PCBs and PCBAs
2. Detailed Terms for Pcb Assembly
Company Introduction
Abis Circuits Co., Ltd is a professional PCB manufacturer which was established on Oct, 2006 and focus on single side, double side, Multilayer and HDI pcb mass production.
Briefly introduce our strengths:
1. A professional PCB manufacturer which was established on Oct, 2006
2. Focusing on double side, Multilayer and HDI pcb mass production
3. Two factories, one for small and middle volume orders, another for big volume and HDI
Pre-Sale and After-Sale Service
1 Hour quotation
2 hours complaint feedback
7*24 hour technical support
7*24 order service
7*24 hour delivery
7*24 production run
Why choose us?
1, With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.
2, We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.
3, We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback
FAQ
Q1: How can I get a quotation:
. Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber
Q2: Can you manufacture my PCBs from a picture file?
. Could you please provide a sample?
Q3: Do you have PCB in stock?
. Most of our PCB board are customized, which according to Gerber file.
. ABIS has samples in stock that could be sent to you for quality checking always.
Q4: What board manufacturer do you use for FR4?
. Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan), and Shengyi (China).
Q5: Will my PCB files be checked?
. Checked within 12 hours. Once Engineer's question and working file be approved, production will start.
Q6: What do you require in order to produce an assembly quotation?
. Bill of materials (BOM) detailing:
a), manufacturers parts numbers,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
d), Quantity
Please keep us informed for any interest!
ABIS cares every your order even 1 piece!
