Electronic Mother Board FR4 CEM 1 Rigid HDI Multilayer PCB

Product Categories
Abis Circuits Co., Ltd.
Contact Now

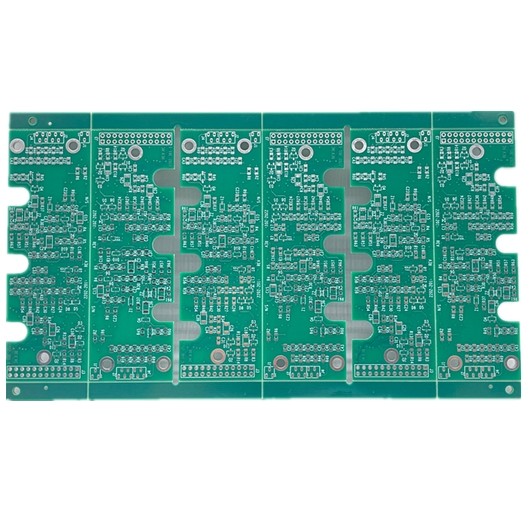

Electronic Mother Board FR4 CEM 1 Rigid HDI Multilayer PCB

  • 1
  • 2
  • 3

Brand Name : Abis

Model Number : Abis-0007

Certification : UL

Place of Origin : China

MOQ : 1

Price : 0.1-0.8

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500000

Delivery Time : 5-8 working day

Packaging Details : vacuum package

Board thickness : 1.6mm,1.6mm-3.2mm

Copper thickness : 1oz,1/2OZ 1OZ 2OZ 3OZ,0.25 Oz -12 Oz

Base material : FR-4,FR-4/aluminum/ceramic/cem-3/FR-1

Min. line spacing : 0.1mm4mil),0.2mm

Min. line width : 0.2mm,0.075mm

Min. hole size : 0.20mm,0.3MM

Surface finishing : HASL,OSP,ENIG,Immersion Gold,lead free

Product name : AC110V 220V Infared Led Pcb Board,custom Single Sided FR1 PCB Manufacturer in China

Application : Consumer Electronics,electronic products

Solder mask : yellow,green,red,black

Layer : 1~20 layers,1-24 layer

Silkscreen color : White or on your request.,Black.white.yellow.red.blue,Green/white/yellow/black/blue/purple,White/black/yellow/red/blue

Color : Green,Customized Color,Blue on your request,Green Blue Black Red White

Solder mask color : blue,White.Black.Yellow.Green.Red.Blue

Standards : IPC-A-610 E Class II-III,IPC 6021 Class 2

Number of layers : 1-8 layers pcb,2/4/6/8/10/12 Layers

Service : One-stop service

Type : SMD LED,custom Single Sided FR1 PCB Manufacturer in China,Electronic Board

Contact Now

One -Stop Solution Customized PCB Bare Board and PCB Assembly supplier



WELCOME TO ABIS CIRCUITS CO., LTD


ABIS Circuits is a professional PCB manufacturing which is focus on double side, Multilayer and HDI pcb mass production. The company was established on 2006, We
have two factories together ,The factory in Shenzhen is specialized in small and middle volume orders and the factory in huizhou is for big volumn and HDI

Electronic Mother Board FR4 CEM 1 Rigid HDI Multilayer PCB

capability

Item

Capability

Rawmaterial

FR-4(HighTG),CEM-1,CEM-3,Rogers.tellonAluminum,Copperbase

Layer

1-26Layer

Min.Linewidth/space

4mil/4mil(0.1mm/0.1mm)

Min.holesize

4mi(O.1mm)

Max.Boardsize

1500mm*600mm(49in*20in)

Min.Boardsize

3mm*3mm

Finishedboardthickness

0.15-5mm

Copperfoilthickness

18um-280um(0.50Z-80Z)

Remainthicnesstolerance

+/-0.1mm

Holepositiontolerace

+/-0.05mm

Routingoutlinetolerance

+/-0.15mm

Punchingoutlinetolerance

+/-0.1mm

Surtacefinished

HASLHASLL/F,ImmersionGold/Silver,ENIG,Tin/Siver,0SP,goldplatng/inger,Carbonink,Peelablemask

Materialbrand

ISOLA,KB,ETL,SY,NAYYA,DUPONTEMC.CHAOSHUN,PANASONIC,TUC

MCPCBproductioncapability

35,000s.qm/month

Electronic Mother Board FR4 CEM 1 Rigid HDI Multilayer PCB

About Service

1 Hour quotation

2 hours complaint feedback
7*24 hour technical support

7*24 order service

7*24 hour delivery

7*24 production run

Electronic Mother Board FR4 CEM 1 Rigid HDI Multilayer PCB

FAQ

Q1:When can I get the quotation?

A:We usually quote with 1 hour after we get your inquiry. If you are very urgent, please call us or tell us in your email.
Q2:Can you provide free samples for me?

A:Free samples depend on your order quantity.
Q3:I am a small wholesaler, do you accept small order?

A:It's no problem. If you're small wholesaler, we would like to grow up with you together.
Q4:How many days will samples be finished? And how about the mass production?

A:Generally 2-3 days for samples making. The lead time of mass production will depend on the order quantity and the season you place the order.
Q5:If I order big quantity, what's the good price?

A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Q6: How can we know the processing about PCB order?
A: Each Customer will have a sale to contact with you. Our working hours: AM 9:00-PM 19:00(Beijing Time) from Monday to Friday. We will reply your email as soon as quickly during our working time. And you also could contact with our sales by cellphone if urgent.
Q7:Can I have samples to test?
A: Yes, we are pleased to supply module samples to test and check quality, mixed sample order is available. Please note buyer should pay for shipping cost.
Q8:Can you design pcb and make files for us?
A:yes,We have a professional drawing engineers' team that you can trust.
Q9:If all pcb , PCBAs will be tested before delivery if we provide the function testing method?
A:Yes, we ensure that each piece of pcb, PCBA will be tested before shipment, we ensure the goods we sent with good quality
Q10:What is the shipping method?

A:We suggest you using DHL, UPS, FedEX, TNT forwarder.
Q11:How about the payment terms?

A:By T/T, Paypal, Western Union, etc.
